香河昆仑锂离子特种电池手册
Lithium Ion Batteries Catalog of Xianghe Kunlun Chemicals Co.,Ltd
1.低温电池Low Temperature Battery：
电池型号 Battery Type：IFP1780123PL
能量密度 Energy Density: 97wh/kg,
体积能量密度Volume energy density: 180wh/L
●电芯采用铝外壳、叠片工艺、焊接引出结构，
Batteries applying aluminum shell, lamination process, welding structure
●重量轻，低内阻，散热快，连接可靠;
light weight, low resistance, fast heat dissipation, reliable connection;
●宇航级密封水平，确保无电解液渗漏;
aerospace grade seal level, ensure no electrolyte leakage;
●通过QC/T 743-2006国家强检，UL1642\UN38.3等多方认证。
Passed QC/T 743-2006 national inspection, UL1642 \ UN38.3 multilateral certification, etc.
●应用场景：极寒地区及低温环境
Application scenarios: extremely cold area and low temperature environment

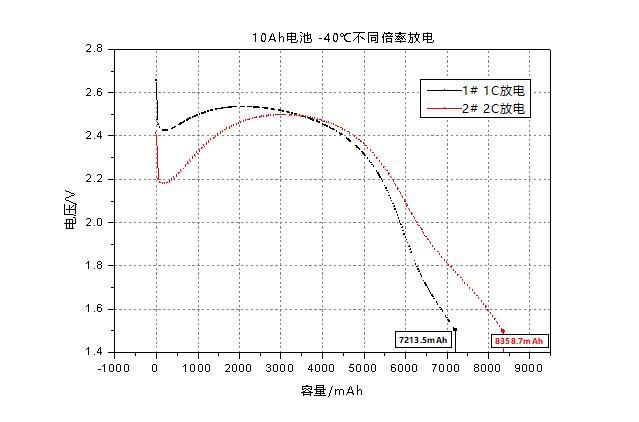

低温放电性能：Low temperature performance:
1C@-40℃>70%
2C@-40℃>80%
2.无烟电池Smokeless Battery：
电池型号Battery Type：IFP34135213E
能量密度Energy Density：160wh/kg
体积能量密度Volume energy density：315wh/L
●电芯采用铝外壳、叠片工艺、焊接引出结构，
Batteries applying aluminum shell, lamination process, welding structure
●重量轻，低内阻，散热快，连接可靠;
light weight, low resistance, fast heat dissipation, reliable connection;
●宇航级密封水平，确保无电解液渗漏;
aerospace grade seal level, ensure no electrolyte leakage;
●电芯材料体系、防爆结构双重安全屏障，
batteries material system, the structure of the explosion-proof double security barrier
●极端滥用情况下，不会发烟、起火、爆炸;
extreme abuse cases, don't smoke, fire and explosion;
●通过QC/T 743-2006国家强检，UL1642\UN38.3等多方认证。
Passed QC/T 743-2006 national inspection, UL1642 \ UN38.3 multilateral certification, etc.
●应用场景：轨道交通等
application scenarios: rail transport, etc
